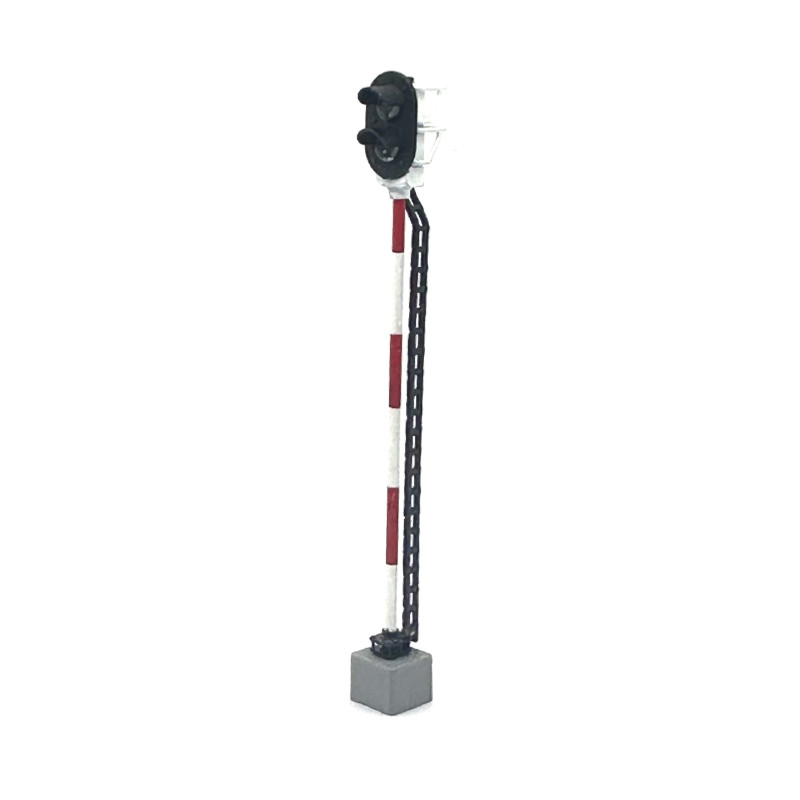

2-Chamber Semi-Automatic Railway Signal

Add realistic railway signalling to your H0 layout with the 2-Chamber Semi-Automatic Railway Signal. This ready-to-install, hand-painted H0 scale (1:87) model is designed for reliable use on model railway layouts.

The semi-automatic railway signal helps recreate realistic railway operating rules on stations, main lines, sidings, and detailed diorama scenes.

Main features

• Ready to use: complete and painted model - install it and connect it to your control system.
• H0 scale (1:87), compatible with the most popular model railway scale.
• Material: resin, PLA, copper.
• 2 light chamber(s); colour sequence: red, white.
• Compatible with DioramaControl: the model can be connected to the application for signal automation and programming.
• Connection wires and control electronics are not included.

Available signal aspects

• S1 - Stop (red light)
• Sz - Shunting movement permitted (flashing white light)

SMD LED power supply

SMD LEDs require 10-20 mA current. A suitable current-limiting resistor must be used according to the supply voltage.

• red LEDs: approx. 2 V
• white LEDs: approx. 3-3.2 V

Safety and legal information

• Model-making product. Not suitable for children under 14 years of age.
• Not a toy - intended for hobby and collector use only.
• Contains small parts - choking hazard.
• Due to handmade production, slight variations in color and dimensions may occur.
